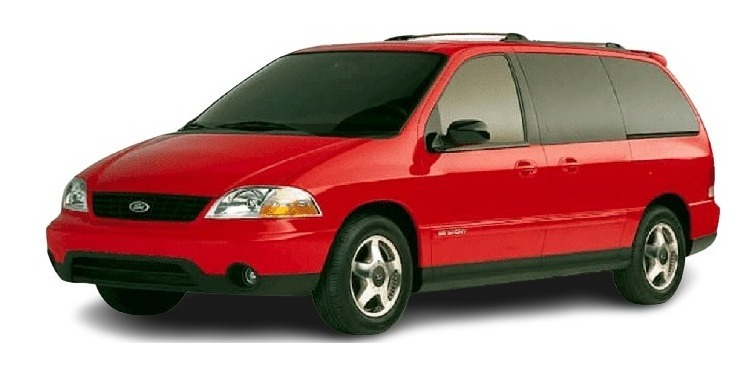

Diagramas Eléctricos Ford Windstar 3.8 (2001)

Para el Diagrama eléctrico FORD WINDSTAR V6-3.8L VIN 4 2001 se incluyen los siguientes componentes:

Engine Control Module (ECM).
Starting Charging – Charging Circuit.
Starting Charging – Starting Circuit.
Body Control Modules/ Módulos de Control del Cuerpo del vehículo (BCM).
Information Bus – Computer Data Lines/ Computadoras del auto (pin data automotriz).
Cruise Control.
Defogger.
Exterior Lights.
Headlights.
Horns.
Instrument Cluster/Tablero de Instrumentos.
Interior Lights.
Mirrors.
Power Windows.
Supplemental Restraints (SRS).
Sound Systems.
Shift Interlock.
Transmission – A/T Circuit.
Anti-lock Brakes/ Frenos Antibloqueo (ABS).
Air Conditioning.
Door Locks.
Camshaft Position Sensor/Engine Coolant Temperature Sensor/Throttle Position Sensor.
Crankshaft Position Sensor / Sensor de posición del cigüeñal (CKP).
Data Link Connector/ Conector de Enlace de Datos (DLC).
Digital Transmission Range Sensor (DTR).
Fuel Injector.
Heated Oxygen Sensor/ Sensor de Oxígeno (HO2S).
Mass Air Flow Meter Sensor / Sensor de flujo de masa de aire (MAF).
Powertrain Control Module (PCM).
Battery Junction Box – Power Distribution Box.
Central Junction Box- Passenger Compartment Fuse Panel.
Anti-Theft.
Trunk, Tailgate, Fuel Doors-Power Sliging Door Circuit.
Cooling Fans.
Wiper/Washer.
Seats.
