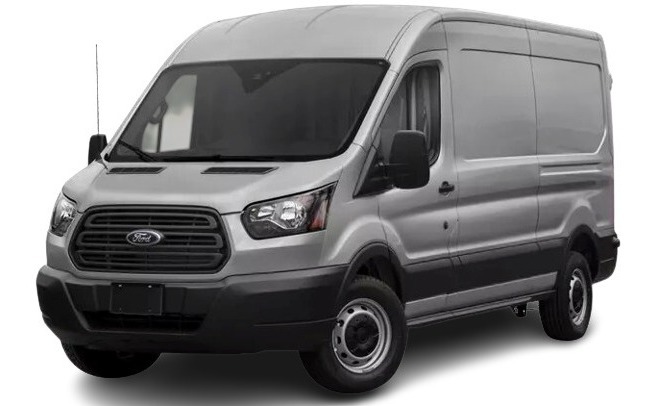

Diagramas Eléctricos Ford Transit 150 3.2 Turbo (2018)

Para el Diagrama eléctrico FORD TRANSIT 150 L5-3.2L DSL TURBO 2018 se incluyen los siguientes componentes:

Engine Control Module (ECM).
Starting Charging – Charging Circuit.
Starting Charging – Starting Circuit.
Body Control Modules/ Módulos de Control del Cuerpo del vehículo (BCM).
Computer Data Lines/ Computadoras del auto (pin data automotriz).
Defogger.
Horns.
Headlights.
Mirrors.
Exterior Lights.
Interior Lights.
Cruise Control.
Instrument Cluster/Tablero de Instrumentos.
Supplemental Restraints (SRS).
Power Windows.
Sound SYstems.
Transmissions.
Shift Interlock.
Anti-Lock Brakes/ Frenos Antibloqueo (ABS).
Air Conditioning.
Accelerator Pedal Position Sensor / Sensor de posición del pedal (APP).
Ambient Air Temperature Sensor.
Camshaft Position Sensor / Sensor de posición del árbol de levas (CMP).
Crankshaft Position Sensor / Sensor de posición del cigüeñal (CKP).
Engine Coolant Temperature Sensor /Sensor de temperatura del refrigerante (ECT).
Front Wheel Speed Sensor LH.
Front Wheel Speed Sensor RH.
Knock Sensor/ Sensor de golpeteo (KS).
Heated Oxygen Sensor/ Sensor de Oxígeno (HO2S).
Manifold Absolute Pressure Sensor (MAP).
Mass Air Flow/Intake Air Temperature Sensor.
Powertrain Control Module (PCM).
Fuse And Relay Information – Battery Junction Box.
Fuse And Relay Information – Auxiliary Fuse Panel.
Fuse And Relay Information – Body Control Module (BCM).
Fuse And Relay Information – High Currrent Battery Junction Box (BJB).
