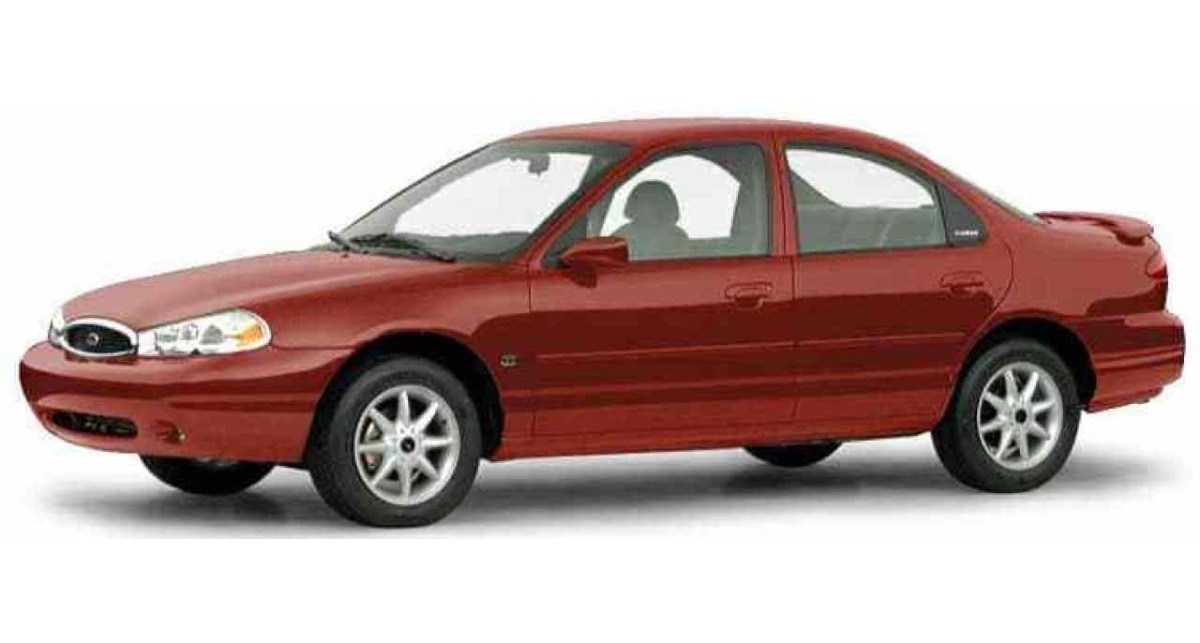

Diagramas Eléctricos Ford Contour 2.0l (2000)

Para el Diagrama eléctrico FORD CONTOUR 2.0L 4 CIL CNG DOHC VIN Z SFI 2000 se incluyen los siguientes componentes:

Engine Control Module (ECM).
Starting Charging – Charging Circuit.
Starting Charging – Starting Circuit.
Information Bus – Computer Data Lines/ Computadoras del auto (pin data automotriz).
Defogger.
Horns.
Headlights.
Mirrors.
Exterior Lights.
Interior Lights.
Instrument Cluster/Tablero de Instrumentos.
Supplemental Restraints (SRS).
Power Windows
Sound Systems.
Power Distribution.
Ground Distribution.
Transmissions.
Shift Interlock.
Anti-Lock Brakes/ Frenos Antibloqueo (ABS).
Air Conditioning.
Camshaft Position Sensor & Crankshaft Position Sensor.
Data Link Connector/ Conector de Enlace de Datos (DLC).
Engine Coolant Temperature Sensor /Sensor de temperatura del refrigerante (ECT).
Air Temperature Sensor & Knock Sensor.
Manifold Absolute Pressure/Throttle Position Sensor.
Engine Compartment Fuse Box.
Passenger Compartment Fuse Box.
Evaporative Emission Canister Purge Solenoid.
Fuel Injectors.
Fuse and Fusible Links.
Fuse Chart.
Post – Heated Oxygen Sensor Pre – Oxygen Sensor.
Idle Air Control Valve/Vehicle Speed Sensor.
